TCL

SKU: TAC-30CSA/ZGT

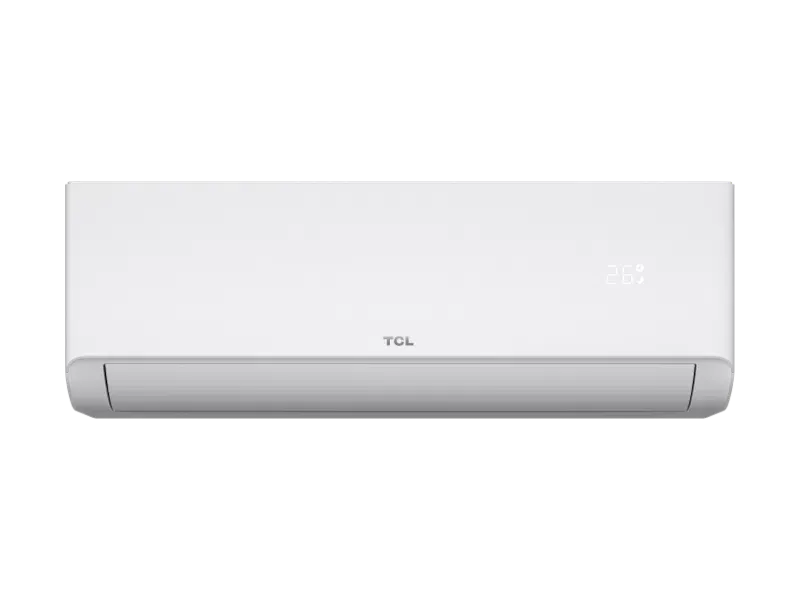

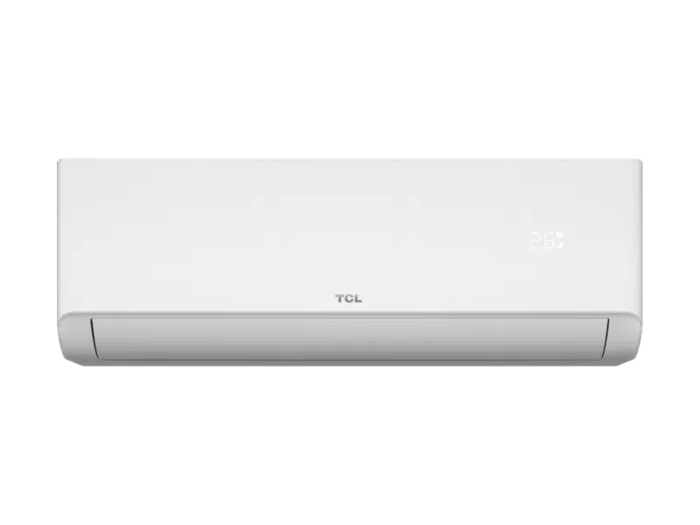

TCL SaveIN Series Split AC T1 28600 BTU / T4 24000 BTU - TAC-30CSA/ZGT

Name: TCL SaveIN Series Split AC T1 28600 BTU T4 24000 BTU TAC30CSAZGT - shrwaa
Brand: TCL
SKU: TAC-30CSA/ZGT
Price: 223.9 KWD
Availability: InStock

· Dimple Airflow Design · 3 Step Self Cleaning · Coanda Airflow

332.900 KD

223.900 KD

33 %

Split your purchases easily

No interest

Split it into 4 payments

55.975 KD /month

Split it into 4 payments

55.975 KD /month

remove 1 add

+ 223 points

SMART COMFORT

Dimple Airflow Design

Inspired by golf ball aerodynamics, the dimple airflow design guides airflow to reach higher and farther along the ceiling.

*Compatible only with 770z to 1010z models.

TCL SaveIN AI Series AC With Dimple Airflow Design

Coanda Airflow Effect

With Coanda airflow effect and 40% larger wide-angle air deflector, it can provide more lifted and longer air supply, creating a wind-free comfort zone for users.

*Compatible only with 770z to 1010z models.

TCL SaveIN AI Series AC With Coanda airflow effect

6-speed Gen Mode

Choose the current level of the unit freely. Optimal solution for unstable power supply areas.

*This feature may vary by model and region.

TCL SaveIN AI Series AC 6-speed Gen Mode

Smart Airflow

Smart airflow optimizes both cooling and heating, delivering strong and even air circulation to every corner of the room.

Shower-style Airflow

Cool Air delivers along the ceiling, avoiding direct blasts.

Stronger Airflow

1570m³/h large-circulation air volume, instantly cooling the entire room.

*The circulation air volume data is based on the TCL SaveIN AI Series 1220z model. Another model has different air volume: 1010z model – 1240m³/h;
*Data tested by TCL Lab, and may be different due to the testing conditions.

TCL SaveIN AI Air Conditioner 1570m³/h large-circulation air volume Stronger Airflow

30s Fast Cooling & 60s Fast Heating

The high-performance inverter compressor cools or warms the room rapidly and stably while remaining energy-efficient.

Stable Operation at 52 ℃ High Ambient Temperature

Air-cooled electrical control box + innovative convective heat exchange duct design, ensuring stable operation under extreme outdoor heat.

MORE FEATURES

3-Step Self-cleaning

The evaporator features a self-cleaning process that includes dewing, frosting, and drying to eliminate bacteria and promote healthier breathing.

TCL SaveIN AI Air Conditioner features a self-cleaning process

Healthy Filters

The healthy filters include silver ion filter, catechin filter,
photocatalyst filter, anti-dust static filter and vitamin C
filter, ensuring cleaner, healthier air for your comfort.

*This feature may be optional and may vary by model and region.

Silver lon Filter

Anti-dust Static Filter

Active Carbon Filter

Catechin Filter

Photocatalyst Filter

Vitamin C Filter

3 Easy Designs

TCL SaveIN AI Air Conditioner Easy Installation

TCL SaveIN AI Air Conditioner Easy Maintenance

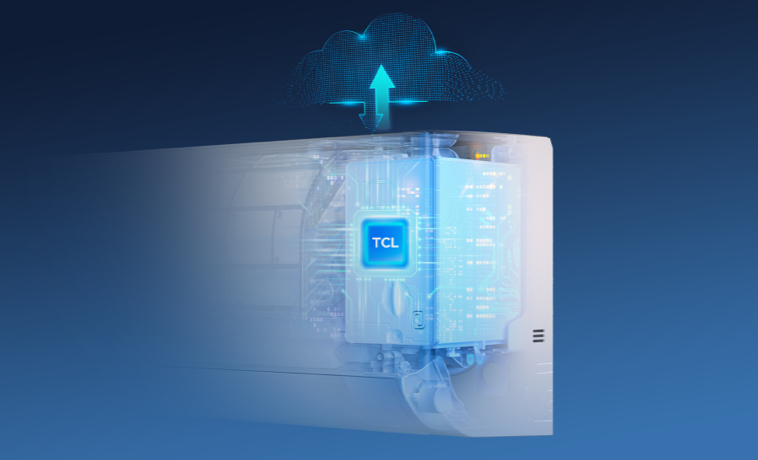

TCL SaveIN AI Air Conditioner Easy OTA Update

Easy Installation

Easy Maintenance

Easy OTA Update

Easy Installation

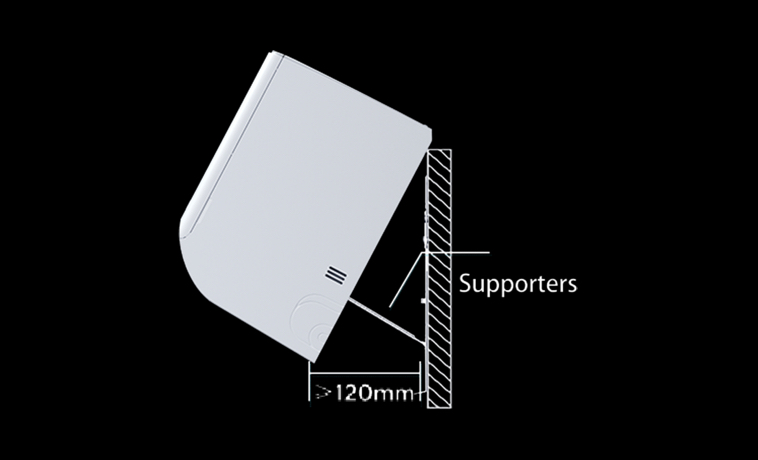

Convenient Installation

Gap ≥120mm
Supporters Available

Integral Design

Turns on as you approach and shutsoff when you leave-saving energy and ensuring comfort.

Whole House Control

Turn on/off all ACs and EcO mode in TCL Home effortlessly.

Easy Maintenance

Open front panel

Take off PCB box cover

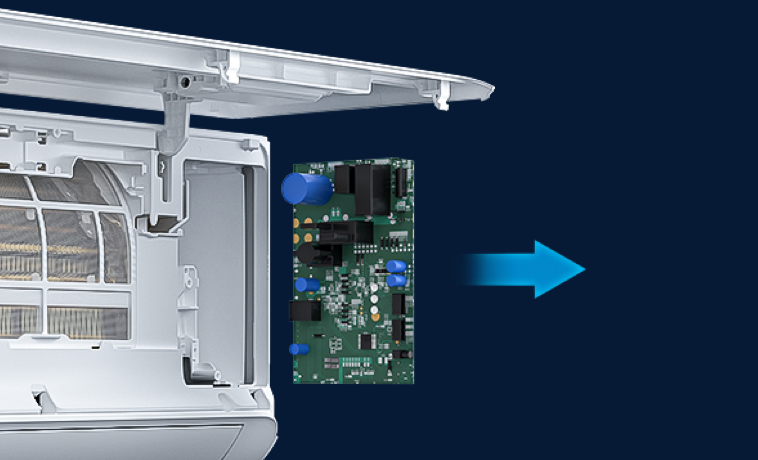

Take out PCB for replacement

Self-diagnosis and
Refrigerant Leakage Reminder

It proactively identifies potential danger, including refrigerant leaks, and notifies you with a code displayed on the control panel. Real-time notifications will also be sent in TCL Home App.

Filter Cleaning
Reminder

Built to remind you when it's time to clean the filter automatically. The reminder displays on the indoor unit or in the TCL Home App.

Bipolar Ionic Generator & UVC Sterilization

*This feature may be optional and may vary by model and region.

Built-in Bipolar lonic Generator

Releases high-energy electrons to ionize the air, generating a large volume of plasma. The activated atoms and strong oxidation substances effectively damage and kill bacteria and viruses.

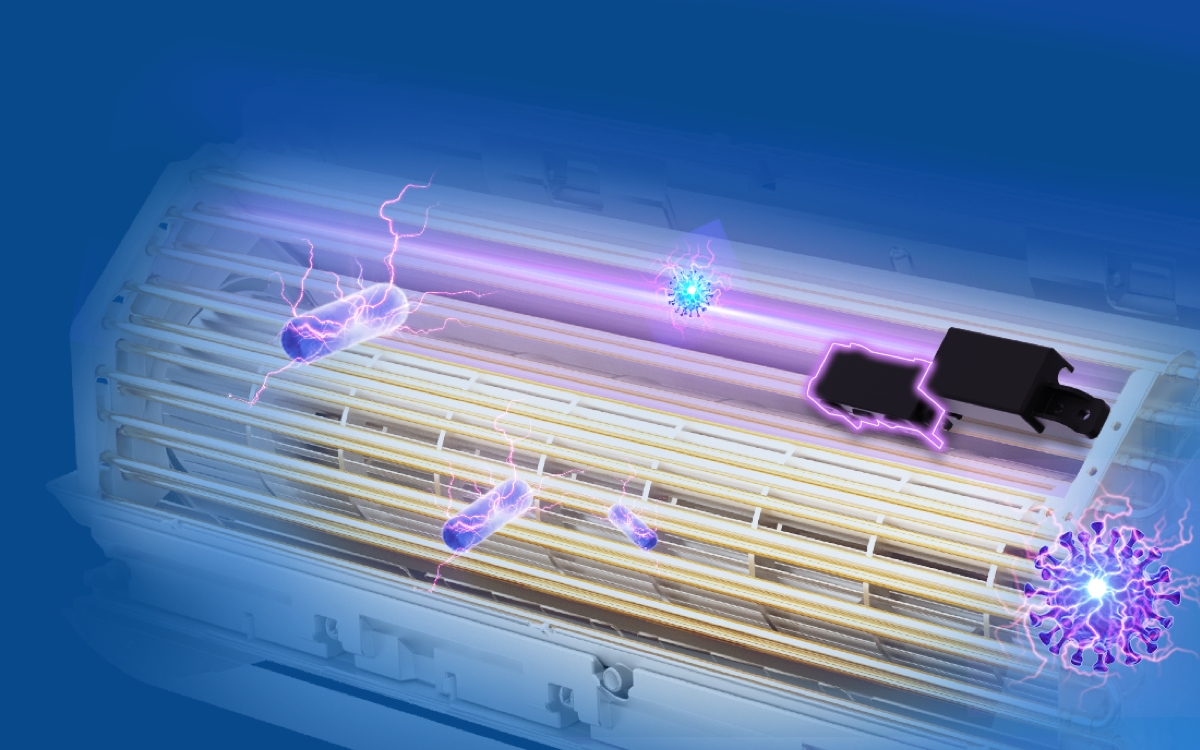

UVC Sterilization

UVC Radiation: 240nm-280nm
Kills bacteria by damaging their protein & DNA.

*This feature may be optional and may vary by model and region.

SPECIFICATIONS:

TypeCooling only, ON/OFF

ClimateT3

Control typeRemote

Power supply (Ph-V-Hz)1Ph-220-240V~50Hz

Voltage Range (V)198~264

Cooling Performance (T1) - Capacity (Btu/h)28600

Cooling Performance (T1) - Capacity (KW)8382

Cooling Performance (T1) - Rated power Input (W)2368

Cooling Performance (T1) - Rated current (A)10.5

Cooling Performance (T1) - EER (Btu/h-W)12.078

Cooling Performance (T1) - Max power Input (W)3600

Cooling Performance (T1) - Max current (A)18.0

Star Rating - Oman7

Star Rating - Bahrain6

Star Rating - Kuwait4

Star Rating - UAE2

Rated Cooling Performance (T3) - Capacity (Btu/h)25100

Rated Cooling Performance (T3) - Capacity (Kw)7356

Rated Cooling Performance (T3) - Rated power Input (W)2786

Rated Cooling Performance (T3) - Rated current (A)12.5

Rated Cooling Performance (T3) - EER (Btu/h-W)9.009

Rated Cooling Performance (T3) - Max power Input (W)3600

Rated Cooling Performance (T3) - Max current (A)18.0

Rated Cooling Performance (T4) - Capacity (Btu/h)24000

Rated Cooling Performance (T4) - Capacity (Kw)7034

Rated Cooling Performance (T4) - Rated power Input (W)2990

Rated Cooling Performance (T4) - Rated current (A)12.3

Rated Cooling Performance (T4) - EER (Btu/h-W)8.027

Rated Cooling Performance (T4) - Max power Input (W)3600

Rated Cooling Performance (T4) - Max current (A)18.0

Rated Cooling Performance (T4) - Power Rating Per Refrigeration Ton(PRT) (kW/RT)1.495

Annual energy consumption(OAMN/Bahrain) (kwh/year)6394

Annual energy consumption(UAE) (kwh/year)5572

Moisture removal (Liters/h)2.8

Indoor noise level (Hi/Me/Lo/Mute) (dB(A))55

Outdoor noise level (dB(A))57

Compressor - ModelATH290MV-C8FU

Compressor - TypeRotary

Compressor - BrandHighly

Expansion deviceCapillary

Indoor air flow (Hi) (m3/h)1500

Indoor unit - Dimension(W*D*H) (mm)1220×360×252

Indoor unit - Packing (W*D*H) (mm)1298×435×326

Indoor unit - Net/Gross weight (Kg)18 / 22

Outdoor unit - Dimension(W*D*H) (mm)978×421×803

Outdoor unit - Packing (W*D*H) (mm)1022x480x835

Outdoor unit - Net/Gross weight (Kg)55 / 64(w/o pipes)

Refrigerant piping - Liquid side/ Gas side (mm(inch))φ6(1/4")/φ15.88(5/8")

Refrigerant piping - Max. refrigerant pipe length (m)15

Refrigerant piping - Max. difference in level (m)5

Pressure - High(DP) (MPa)4.5

Pressure - Low(SP) (MPa)1.9

RefrigerantR410A /1.500kg

Ambient temperature (℃)15~55

Suitable area (㎡)40~60

Connecting Wiring - Size x Core number0.75mm² x 4

Nominal Qty 40'HQ106
