| Brand |
Zebra |
| Model |

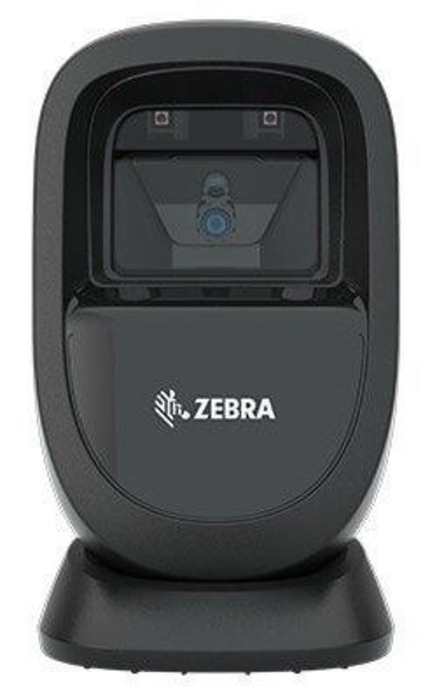

DS9308 |
| Series |
DS9300 Series |
| Product Type |
Hands-Free / Presentation Barcode Scanner |
| Connection Type |
Corded |
| Scan Type |
1D / 2D / OCR / Digimarc* |
| Image Sensor |
1280 × 800 pixels |
| Scan Range |
Standard Range |
| Field of View |
52° Horizontal × 33° Vertical |
| Swipe Speed |
Up to 120 in./305 cm per second
for 13 mil UPC in optimized mode |
| Aiming Light |
Circular 617 nm amber LED |
| Illumination |
660 nm Hyper Red LED |
| 1D Barcodes |
Code 39, Code 128, Code 93, Codabar/NW7, Code 11,
MSI Plessey, UPC/EAN, Interleaved 2 of 5,
GS1 DataBar and others |
| 2D Barcodes |
QR Code, Micro QR, Data Matrix, PDF417, MicroPDF417,
Aztec, MaxiCode, Han Xin, Postal Codes, DotCode
and others |
| OCR Support |
OCR-A, OCR-B, MICR, US Currency |
| Min. Resolution – Code 39 |
3 mil |
| Min. Resolution – Code 128 |
3 mil |
| Min. Resolution – Data Matrix |
5 mil |
| Min. Resolution – QR Code |
5 mil |
| Typical UPC 13 Mil Range |
0–8.8 in. / 0–22.4 cm |
| Host Interfaces |
USB, RS-232, Keyboard Wedge,
TGCS (IBM) 46XX over RS485 |
| USB |
USB 2.0 Full Speed compliant |
| Keyboard Support |
More than 90 international keyboards |
| Input Voltage |
4.5–5.5 VDC |
| Operating Current |
Presentation: 335 mA
Trigger: 350 mA |
| Standby Current |
Presentation: 135 mA
Trigger: 75 mA |
| User Indicators |
Good-decode LEDs, rear-view LEDs
and adjustable beeper |
| EAS Support |
Compatible with Checkpoint EAS deactivation system |
| Dimensions (H × W × D) |
14.5 × 8.6 × 8.3 cm |
| Weight |
318 g |
| Color Options |
Midnight Black / Alpine White |
| Accessories |
Multi-mount bracket
Locking-mount bracket |
| Warranty |
6 Months |
