| Description |

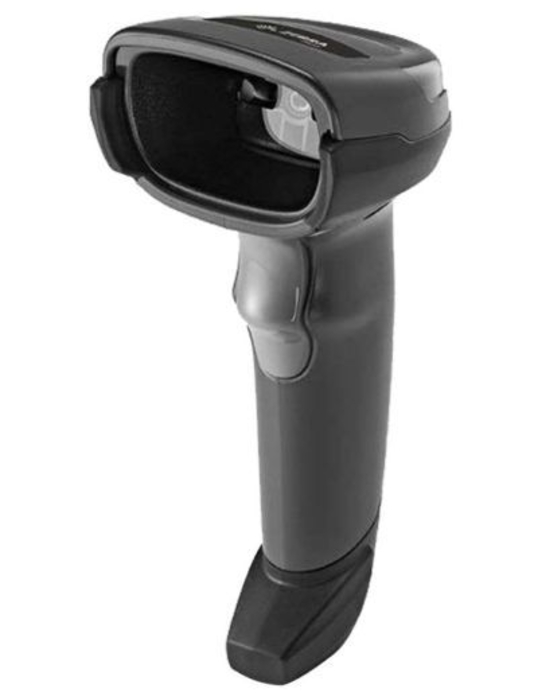

The Zebra DS2208-SR is a reliable, ergonomic 1D/2D barcode scanner designed to offer powerful scanning capabilities at an affordable price.
Perfect for retail, hospitality, and general-purpose environments, it reads both printed and digital barcodes with ease, including loyalty cards, coupons, and mobile screens.
Its plug-and-play setup and intuitive design make it ideal for reducing transaction times and increasing efficiency at the point of sale. |
| Model |
Zebra DS2208-SR |
| Form Factor |
Handheld Imager |
| Scan Type |
1D & 2D Imager |
| Connectivity |
USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS-485 |
| Scanning Range |
Up to 36.8 cm (varies by barcode type and density) |
| Scan Speed |
Up to 76.2 cm/sec |
| Light Source |
Aiming Pattern: Linear 617 nm Amber LED |
| Supported Barcodes |
1D: UPC/EAN, Code 128, Code 39, etc.
2D: PDF417, QR Code, Data Matrix, Aztec, etc. |
| Dimensions |
16.5 cm × 6.6 cm × 9.9 cm |
| Weight |
161.6 g |
| Color |
Twilight Black |
| Mounting |
Handheld (Optional stand available) |
| Motion Tolerance |
13 mil UPC at 25 in/sec (63.5 cm/sec) |
| Print Contrast |
25% minimum reflective difference |
| Scan Angle |
Horizontal: 32.8°, Vertical: 24.8° |
| Scan Confirmation |
Direct decode indicator, LED, beeper |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Humidity |
5% to 95% non-condensing |
| Drop Spec |
Withstands multiple 1.5 m drops to concrete |
| Environmental Sealing |
IP42 |
| Interface |
USB, RS232, KBW (Auto-host detection) |
| Indicator Feedback |
Beep, LED, direct decode indicator |
| Ease of Use |
Point-and-shoot with aim line, omni-directional scanning |
| Included Accessories |
- DS2208 Imager
- Interface cable (varies by SKU)
- Quick Start Guide
- Warranty Card |
| Warranty |
1 year |
