| Product Name |

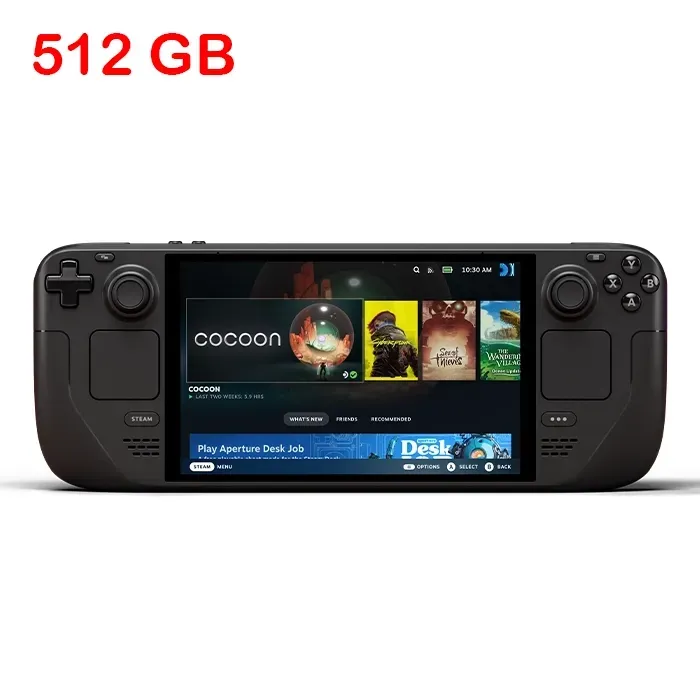

Valve Steam Deck OLED (512GB Model) |
| Color |
Black |
| Model / Edition |
512GB OLED |
| Release Date |
Announced November 2023 |
| Form Factor |
Handheld Gaming Console / Portable Gaming PC |
| Display Size |
7.4 inches (diagonal) |
| Display Type |
HDR OLED |
| Display Resolution |
1280 x 800 pixels (16:10 aspect ratio) |
| Refresh Rate |
Up to 90 Hz |
| Response Time |
< 0.1 ms |
| Brightness |
1,000 nits peak (HDR) / 600 nits (SDR) |
| Special Display Features |
Contrast Ratio: >1,000,000:1, 110% P3 Color Gamut, High-Performance Touch with 180Hz Polling Rate |
| Processor (SoC) |
Custom 6nm AMD APU |
| CPU |
Zen 2 (4 cores, 8 threads), 2.4 - 3.5 GHz |
| GPU |
RDNA 2 (8 Compute Units), 1.6 GHz |
| APU Power |
4 - 15W |
| RAM |
16 GB LPDDR5 (6400 MT/s, quad 32-bit channels) |
| Internal Storage |
512 GB NVMe SSD |
| Expandable Storage |
Yes - UHS-I MicroSD slot (supports SD, SDXC, SDHC) |
| Controls - General |
A B X Y buttons, D-pad, View & Menu buttons |
| Controls - Analog |
2 x full-size analog sticks with capacitive touch sensors |
| Controls - Triggers & Bumpers |
L & R analog triggers, L & R bumpers |
| Controls - Grip Buttons |
4 x assignable grip buttons on the back |
| Controls - Trackpads |
2 x 32.5mm square pressure-sensitive trackpads with haptic feedback |
| Controls - Motion |
6-Axis IMU Gyroscope |
| Haptics |
HD Haptics |
| Wireless Connectivity |
Tri-band Wi-Fi 6E (2.4, 5, 6 GHz), Bluetooth 5.3 (dedicated antenna) |
| Wired Connectivity |
USB-C with DisplayPort 1.4 Alt Mode (supports up to 4K @120Hz / 8K @60Hz), 3.5mm stereo headphone/headset jack |
| Audio |
Stereo speakers with embedded DSP, Dual microphone array |
| Sensors |
Dual Ambient Light Sensor (ALS) |
| Battery |
50 Whr |
| Battery Life (Gameplay) |
3 - 12 hours (depending on game content and settings) |
| Charging |
45W USB-C Power Delivery (PD3.0) power supply, 2.5m cable |
| Operating System |
SteamOS 3 (Arch-based) |
| Dimensions (W x D x H) |
298 mm x 117 mm x 49 mm |
| Weight |
Approximately 640 grams |
| Included in Box |
Steam Deck Console, 45W USB-C Charger (with 2.5m cable), Carrying Case, Steam Profile Bundle |
