TCL

SKU: TAC-18CSA/ZGT

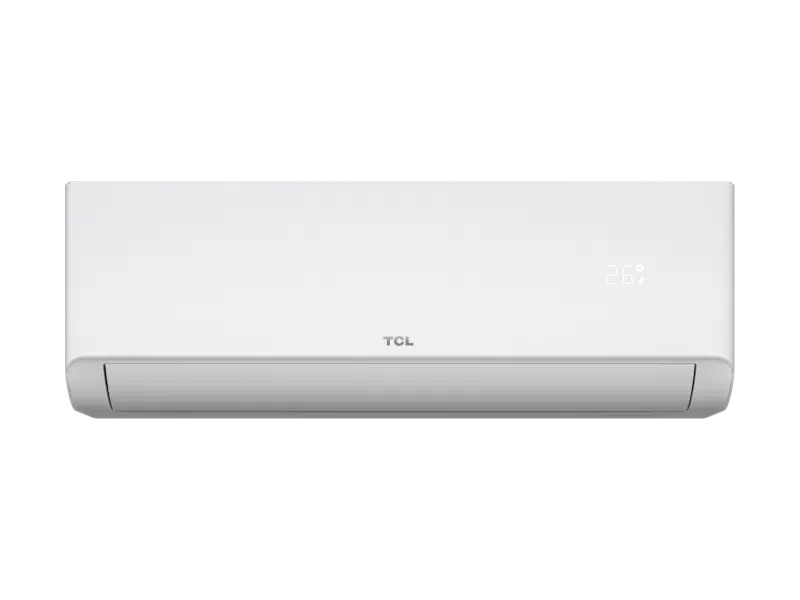

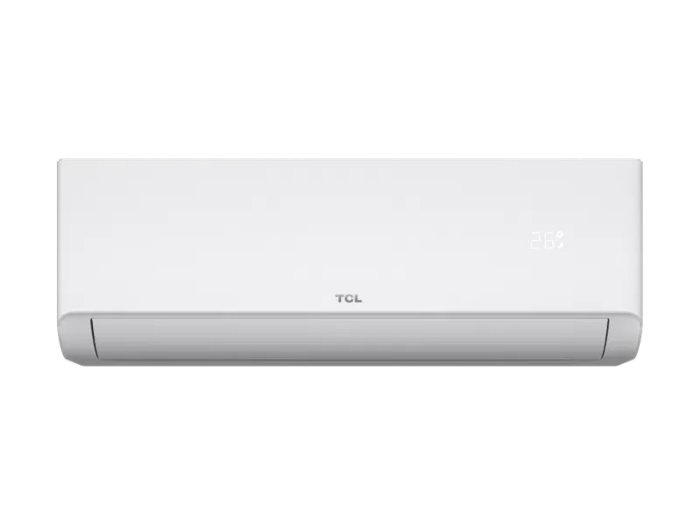

TCL SaveIN Series Split AC T1 18200 BTU / T4 15300 BTU - TAC-18CSA/ZGT

Name: TCL SaveIN Series Split AC T1 18200 BTU T4 15300 BTU TAC18CSAZGT - shrwaa
Brand: TCL
SKU: TAC-18CSA/ZGT
Price: 151.9 KWD
Availability: InStock

· Dimple Airflow Design · 3 Step Self Cleaning · Coanda Airflow

228.900 KD

151.900 KD

34 %

Split your purchases easily

No interest

Split it into 4 payments

37.975 KD /month

Split it into 4 payments

37.975 KD /month

remove 1 add

+ 151 points

TCL SaveIN AI Air Conditioner Easy Installation

Convenient Installation

Gap ≥120mm
Supporters Available

Integral Design

Turns on as you approach and shutsoff when you leave-saving energy and ensuring comfort.

Whole House Control

Turn on/off all ACs and EcO mode in TCL Home effortlessly.

Easy Maintenance

Open front panel

Take off PCB box cover

Take out PCB for replacement

Self-diagnosis and
Refrigerant Leakage Reminder

It proactively identifies potential danger, including refrigerant leaks, and notifies you with a code displayed on the control panel. Real-time notifications will also be sent in TCL Home App.

Filter Cleaning
Reminder

Built to remind you when it's time to clean the filter automatically. The reminder displays on the indoor unit or in the TCL Home App.

Bipolar Ionic Generator & UVC Sterilization

*This feature may be optional and may vary by model and region.

Built-in Bipolar lonic Generator

Releases high-energy electrons to ionize the air, generating a large volume of plasma. The activated atoms and strong oxidation substances effectively damage and kill bacteria and viruses.

UVC Sterilization

UVC Radiation: 240nm-280nm
Kills bacteria by damaging their protein & DNA.

*This feature may be optional and may vary by model and region.

SPECIFICATIONS:

TypeCooling only, ON/OFF

ClimateT3

Control typeRemote

Power supply (Ph-V-Hz)1Ph-220-240V~50Hz

Voltage Range (V)198~264

Cooling Performance (T1) - Capacity (Btu/h)18200

Cooling Performance (T1) - Capacity (KW)5334

Cooling Performance (T1) - Rated power Input (W)1529

Cooling Performance (T1) - Rated current (A)6.7

Cooling Performance (T1) - EER (Btu/h-W)11.903

Cooling Performance (T1) - Max power Input (W)2300

Cooling Performance (T1) - Max current (A)12.5

Star Rating - Kuwait5

Rated Cooling Performance (T3) - Capacity (Btu/h)16200

Rated Cooling Performance (T3) - Capacity (Kw)4748

Rated Cooling Performance (T3) - Rated power Input (W)1748

Rated Cooling Performance (T3) - Rated current (A)8.0

Rated Cooling Performance (T3) - EER (Btu/h-W)9.268

Rated Cooling Performance (T3) - Max power Input (W)2300

Rated Cooling Performance (T3) - Max current (A)12.5

Rated Cooling Performance (T4) - Capacity (Btu/h)15300

Rated Cooling Performance (T4) - Capacity (Kw)4484

Rated Cooling Performance (T4) - Rated power Input (W)1841

Rated Cooling Performance (T4) - Rated current (A)7.8

Rated Cooling Performance (T4) - EER (Btu/h-W)8.311

Rated Cooling Performance (T4) - Max power Input (W)2300

Rated Cooling Performance (T4) - Max current (A)12.5

Rated Cooling Performance (T4) - Power Rating Per Refrigeration Ton(PRT) (kW/RT)1.444

Annual energy consumption(OAMN/Bahrain) (kwh/year)4128

Annual energy consumption(UAE) (kwh/year)3496

Moisture removal (Liters/h)1.8

Indoor noise level (Hi/Me/Lo/Mute) (dB(A))46

Outdoor noise level (dB(A))53

Compressor - ModelASL180MV-C7EUT

Compressor - TypeRotary

Compressor - BrandHighly

Expansion deviceCapillary

Indoor air flow (Hi) (m3/h)1100

Indoor unit - Dimension(W*D*H) (mm)1005×321×220

Indoor unit - Packing (W*D*H) (mm)1096×390×297

Indoor unit - Net/Gross weight (Kg)12 / 14

Outdoor unit - Dimension(W*D*H) (mm)927×380×699

Outdoor unit - Packing (W*D*H) (mm)960×430×732

Outdoor unit - Net/Gross weight (Kg)41 / 43

Refrigerant piping - Liquid side/ Gas side (mm(inch))φ6(1/4")/φ12(1/2")

Refrigerant piping - Max. refrigerant pipe length (m)15

Refrigerant piping - Max. difference in level (m)5

Pressure - High(DP) (MPa)4.5

Pressure - Low(SP) (MPa)1.9

RefrigerantR410A/0.720kg

Ambient temperature (℃)15~55

Suitable area (㎡)20~35

Connecting Wiring - Size x Core number1.5m㎡×3

Nominal Qty 40'HQ155
