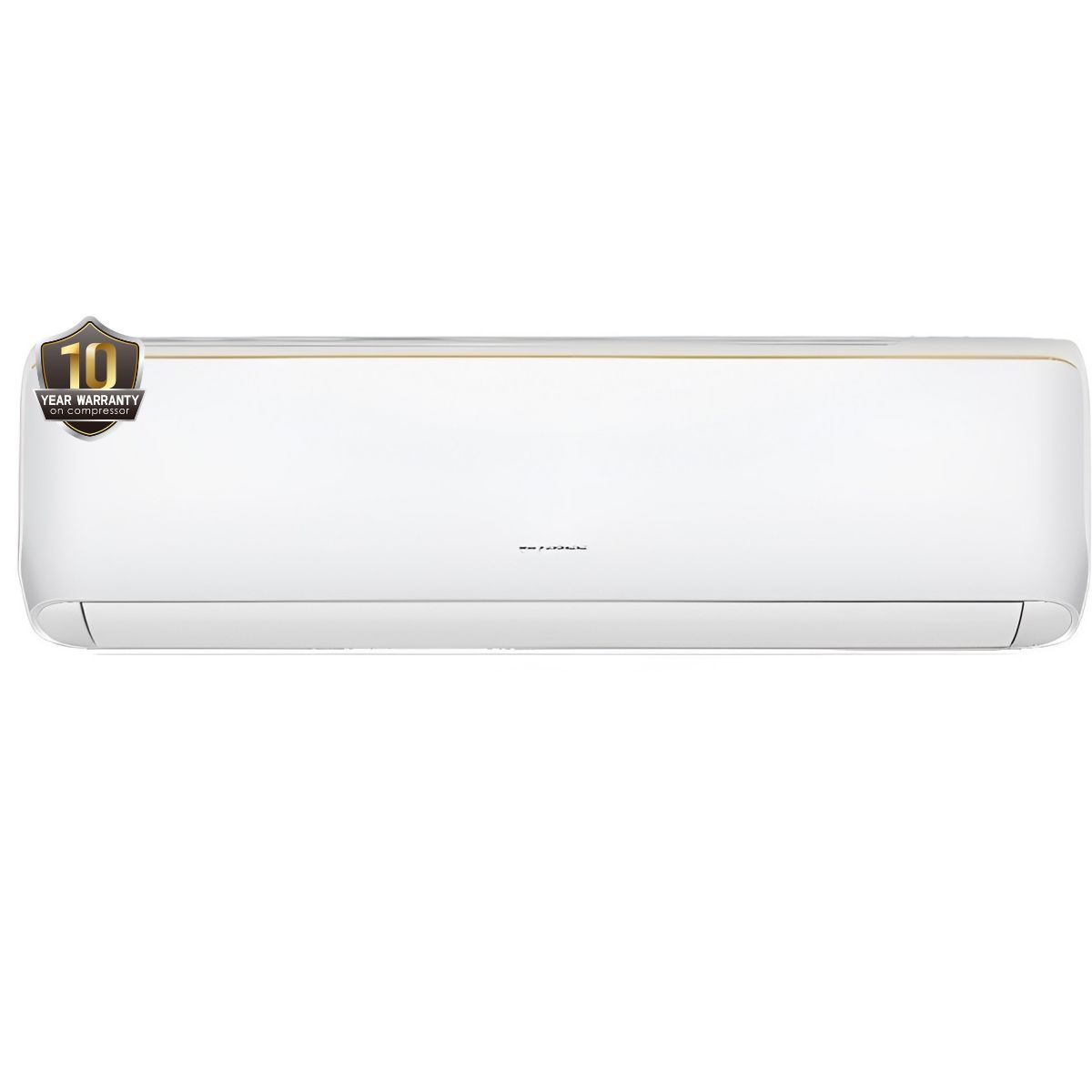

Gree Solar Split Air Conditioner 22,000 BTU Hot and Cold - GSK-SLR24CH(I)

Intelligent Green Electricity System

PV Direct Drive Technology

• The first used in the field of residential air conditioners, higher power utilization, high efficiency, high space utilization, high reliability, high adaptability, comprehensive energy utilization efficiency up to 99%.

Zero Carbon Source RAC

• Efficiency: 99.04%

Regular Solution

• Efficiency: 94%

Specifications:

• Brand: Gree
• Type: Solar Split AC
• Model: GSK-SLR24CH(I)
• Outdoor: GSK-SLR24CH(O)
• 7 Stars
• Wi-Fi
• G-Boost Inverter
• Hot and Cold
• R410A

T1 Rated

Cooling Capacity:

• W: 6450
• BTU/H: 22,000

Cooling Power Input:

• W: 1550

EER:

• W/W: 4.15
• BTU/(W.H): 14.2

T4 Rated

Cooling Capacity:

• W: 6450
• BTU/H: 19,100

Cooling Power Input:

• W: 2250

EER:

• W/W: 2.86
• BTU/(W.H): 9.8

T1 Middle

Cooling Capacity:

• W: 3230

Cooling Power Input:

• W: 540

EER:

• W/W: 5.97

T1 Min.

Cooling Capacity

• W: 1525

Cooling Power Input:

• W: 240

EER:

• W/W: 6.34

SEER

SEER:

• Btu/(W.h): 18.08

Item Capacity

• Air D.B.T (I): 20°C
• Air W.B.T (I): 15°C
• Air D.B.T (O): 7°C
• Air W.B.T (O): 6°C
• Heating Capacity: 7350 W / 25000 BTU/H
• Heating Power Input: 1950 W

COP

• COP: 3.77

AC General Policy for Installations

Additional Information:

• Pipe kit length included with Wall unit are 5 M (From 18000 to 36000)
• Pipe kit length included with Wall unit are 3.5 M (for 12000)
• Pipe kit length included with Cassette & Floor standing unit are 7.5 M
• Extra pipe kit per meter: 7.000 KD

Removal and Fixing Charges:

• Removing old wall units per unit: 10.000 KD
• Removing old wall units & fixing on the same House per unit: 35.000 KD
• Removing old wall units & shift area to area per unit: 45.000 KD
• Removing old cassette units per unit: 25.000 KD
• Removing old cassette units & fixing them in the same House per unit: 45.000 KD
• Removing old cassette units & shift area to area per unit: 60.000 KD
• All removing and fixing units (without pipe & Gas)
• Gas Charge: 15.000 KD per unit.
• Power Point (1 Phase and 3 Phase): 75.000 KD.

Note:

Air conditioning units’ warranty (wall / cassette / Free stand) includes 1 year full & 5 years for the compressor starting from the date of operation, with the possibility of an additional warranty according to the terms and conditions.

Installation Policy:

• No additional civil work will be undertaken, such as chipping, welding frames, cutting glass or aluminum, or creating core holes in the ceiling and beams.
• Drains will not be connected to the main drain, as this is considered plumbing work.
• New units will not be installed on old pipes. If the customer insists on using old pipes, no responsibility will be taken for any cooling issues.
• Outdoor units will not be hung on Tabouk (White Blocks).
• Outdoor units will not be hung at a height exceeding 3 meters.
• No liability will be accepted for broken or blocked pipes, or for modifying decor after pipes are fixed in good condition.
• No liability will be accepted if the customer operates the inverter unit using a generator, as this will void the warranty.
• The power unit must be arranged close to the indoor unit for single-phase systems and near the outdoor unit for three-phase systems.
